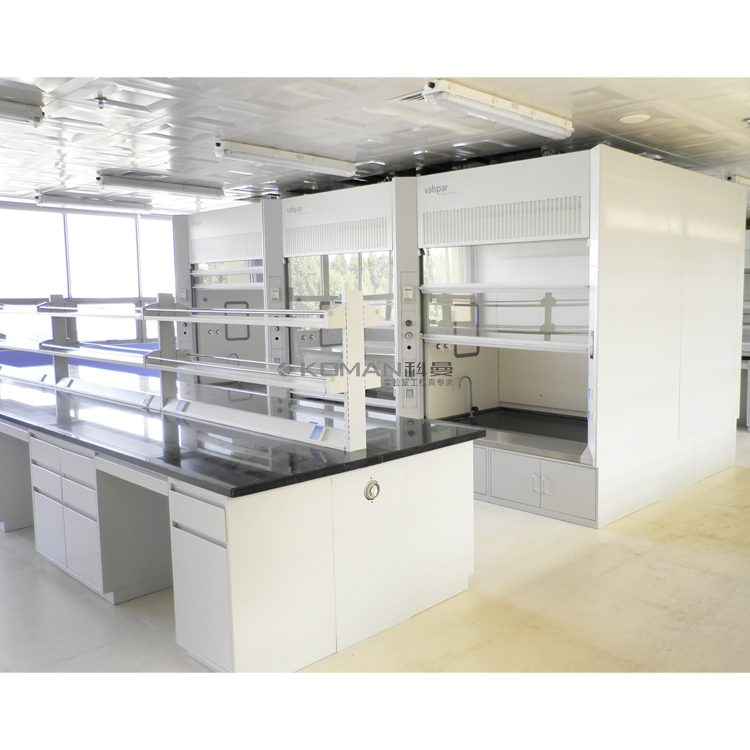

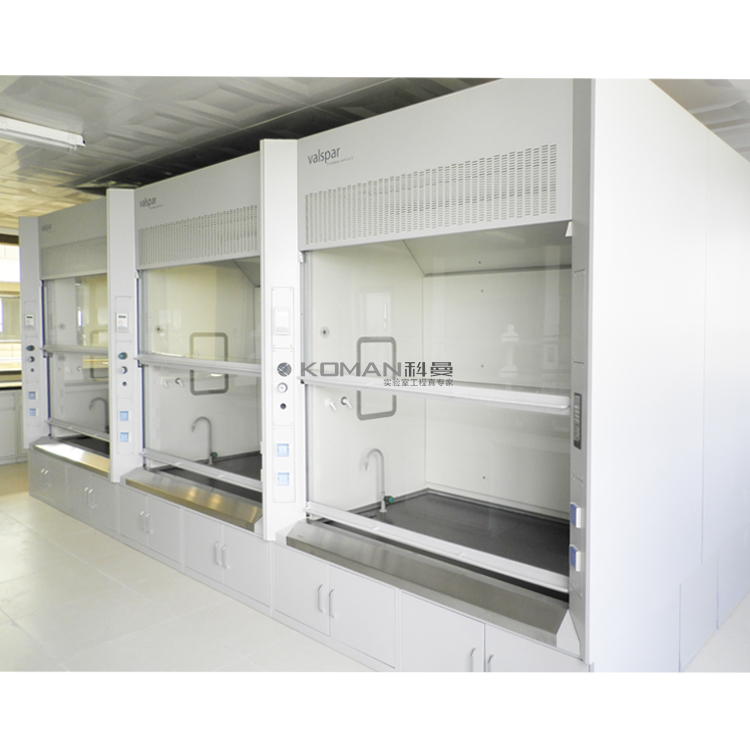

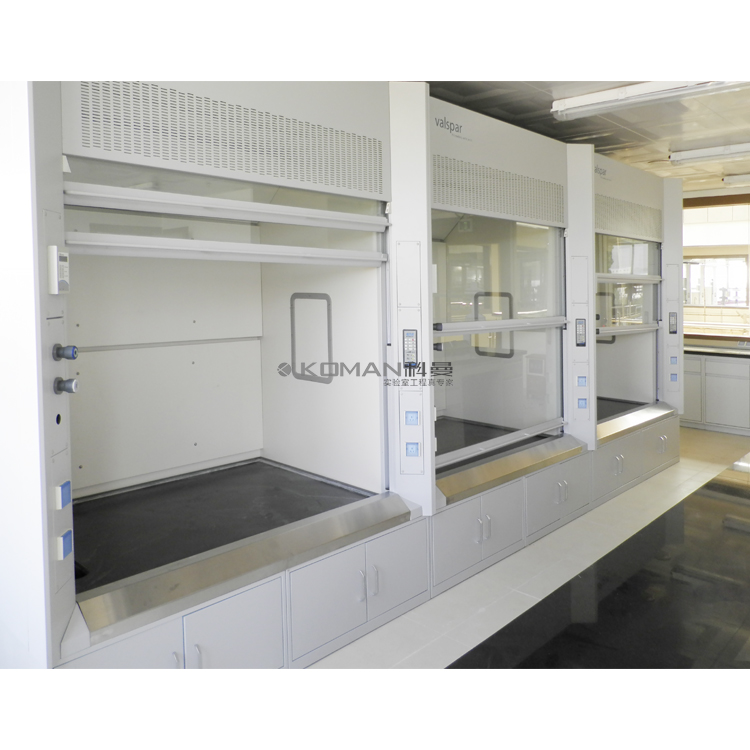

Customized Walk In Laboratory Fume Hood Machine

Part of three-stage exhaust design in the walk in laboratory fume hood, KOMAN can eliminate dead spots of different densities. The laboratory fume hood machine has complete functions and tight protection. The walk in fume hood of KOMAN is the experiment guardian of room workers.

Description:

• Type: walk in laboratory fume hood

• General Use: Commercial Furniture

• Material: Metal

• Metal Type: all-steel/stainless steel/steel wood

• Place of Origin: Shenzhen, China

• Brand Name: KOMAN

• Product Name: laboratory fume hood machine

• Product name: Laboratory walk in fume hood

• Frame: Cold-roll Steel Sheets

• Coating: Epoxy Resin Powder Coating

• Function: 100% air removal to outside the building

• Sash: Vertical/Horizontal Sliding doors

• Accessory: PP sink/ water valve/water tap/gas valve/gas tap/etc

• System: CAV/VAV system optional

• Dimension: 1200/1500/1800*880*2350mm/Customized

• Packaging: Poly Foam + Pearl-Cotton + Wooden Carton

• Keyword: walk in fume hood

Specifications:

External Size(W*D*H)1200 x 880 x 2350 mm1500 x 880 x 2350 mm1800 x 880 x 2350 mm
Internal Size(W*D*H)950 x 700 x 1150 mm1250 x 700 x 1150 mm1550 x 700 x 1150 mm
Work Surface Height850 mm850 mm850 mm
Exhaust air volume700-1300m³/h900-1700m³/h1300-2100m³/h
Air Velocity0.3 -- 0.6 m/s
Noise≤65dB(A)
Sash6mm tempered glass
Power SupplyAC110/220V, 50/60Hz(optional)
MaterialMain Body1.0mm, 1.2mm thickness cold-rolled steel with epoxy resin powder coating.
Inner liner Panel5mm thickness compact panel, acid and alkali resistance, temperature resistance and anti-moisture. (Ceramic/ glass fiber/ stainless steel/ PP/ etc optional )
WorktopStandard configuration for the epoxy resin worktop(with the edge of the water) (Phenolic resin, ceramic, stainless steel/ etc. optional)
Exhaust SystemDuctPVC duct system according to your piping layout
BlowerCentrifugal blower
SystemCAV/VAV system optional
AccessoryGas tap, water tap with PP cup sink
Remote control water valve, remote control gas valve
4 waterproof sockets
3 meter PP/PVC duct
10W LED lamp
LED control panel
Net Weight300kgs400kgs500kgs
