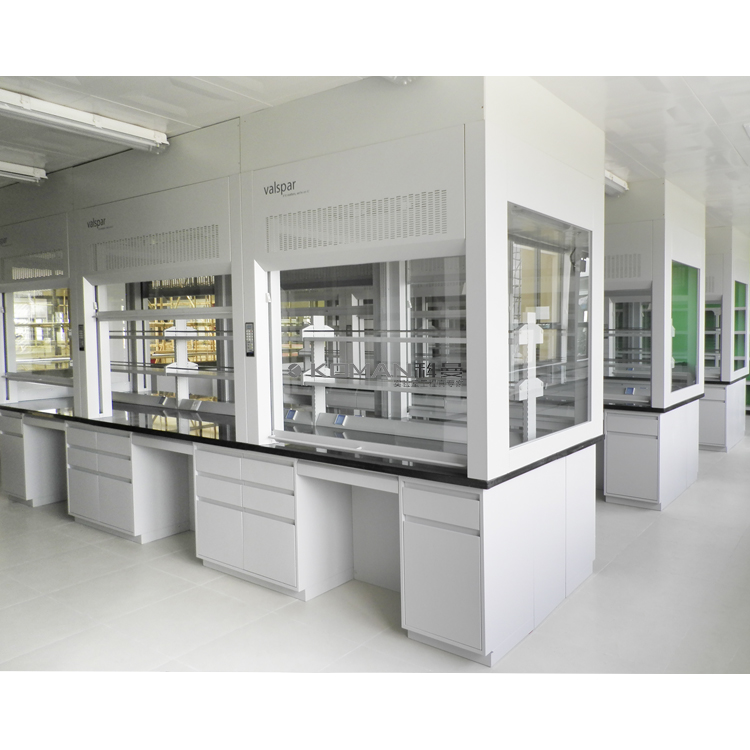

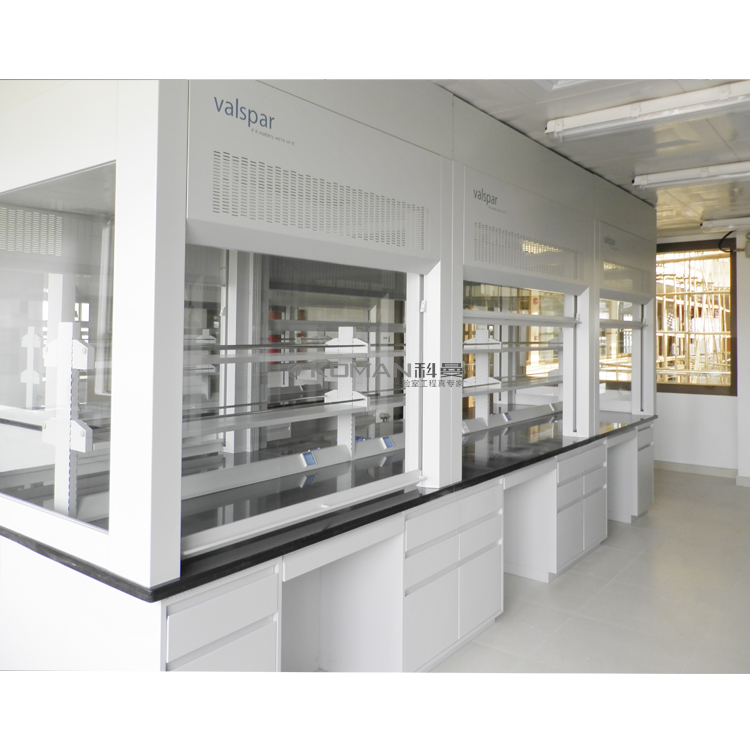

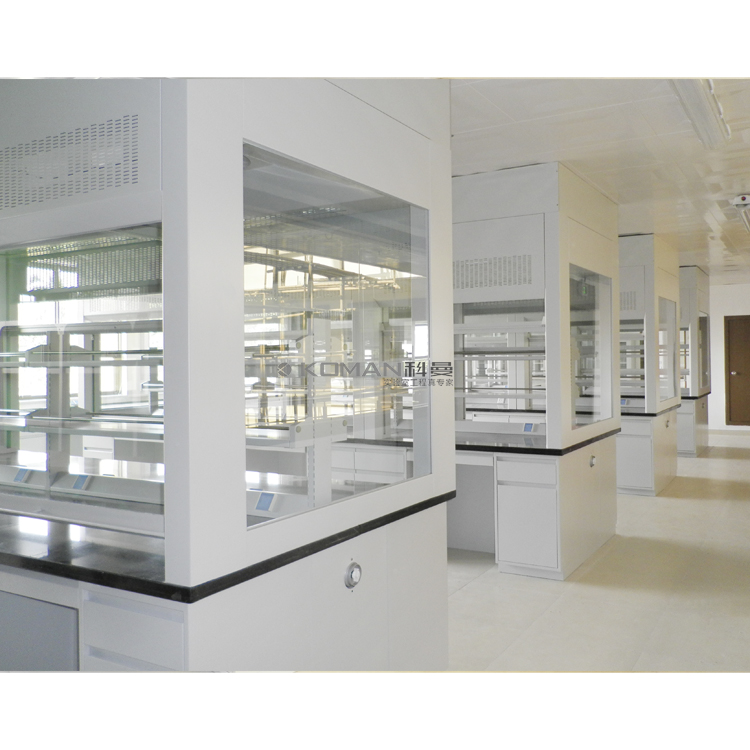

KOMAN laboratory fume hoods adopts a strong corrosion-resistant plate, which not only ensures that the samples inside the fume extraction cabinet are not contaminated, but also ensures the long life of the Chemical fume cabinet.
Description:
• Type: chemical fume cabinet
• General Use: Commercial Furniture
• Metal Type: all-steel/stainless steel/steel wood
• Place of Origin: Shenzhen, China
• Brand Name: KOMAN
• Product Name: fume extraction cabinet
• Framework: Cold-roll Steel Sheets
• Worktop: Epoxy Resin/Phenolic Resin/Ceramic/Customized
• Dimension: 1200/1500/1800*880*2350mm/Customized
• Coating: Epoxy Resin Powder Coating
• System: CAV/VAV systems optional
• Packaging Details
• Wooden carton or packaged as requirement
Keyword: laboratory fume hoods
Specifications:
| External Size(W*D*H) | 1200 x 880 x 2350 mm | 1500 x 880 x 2350 mm | 1800 x 880 x 2350 mm | |
| Internal Size(W*D*H) | 950 x 700 x 1150 mm | 1250 x 700 x 1150 mm | 1550 x 700 x 1150 mm | |
| Work Surface Height | 850 mm | 850 mm | 850 mm | |
| Exhaust air volume | 700-1300m³/h | 900-1700m³/h | 1300-2100m³/h | |
| Air Velocity | 0.3 -- 0.6 m/s | |||
| Noise | ≤65dB(A) | |||
| Sash | 6mm tempered glass | |||
| Power Supply | AC110/220V, 50/60Hz(optional) | |||
| Material | Main Body | 1.0mm, 1.2mm thickness cold-rolled steel with epoxy resin powder coating. | ||
| Inner liner Panel | 5mm thickness compact panel, acid and alkali resistance, temperature resistance and anti-moisture. (Ceramic/ glass fiber/ stainless steel/ PP/ etc optional ) | |||
| Worktop | Standard configuration for the epoxy resin worktop(with the edge of the water) (Phenolic resin, ceramic, stainless steel/ etc. optional) | |||
| Exhaust System | Duct | PVC duct system according to your piping layout | ||
| Blower | Centrifugal blower | |||
| System | CAV/VAV system optional | |||
| Accessory | Gas tap, water tap with PP cup sink | |||
| Remote control water valve, remote control gas valve | ||||
| 4 waterproof sockets | ||||
| 3 meter PP/PVC duct | ||||
| 10W LED lamp | ||||
| LED control panel | ||||
| Net Weight | 300kgs | 400kgs | 500kgs | |
