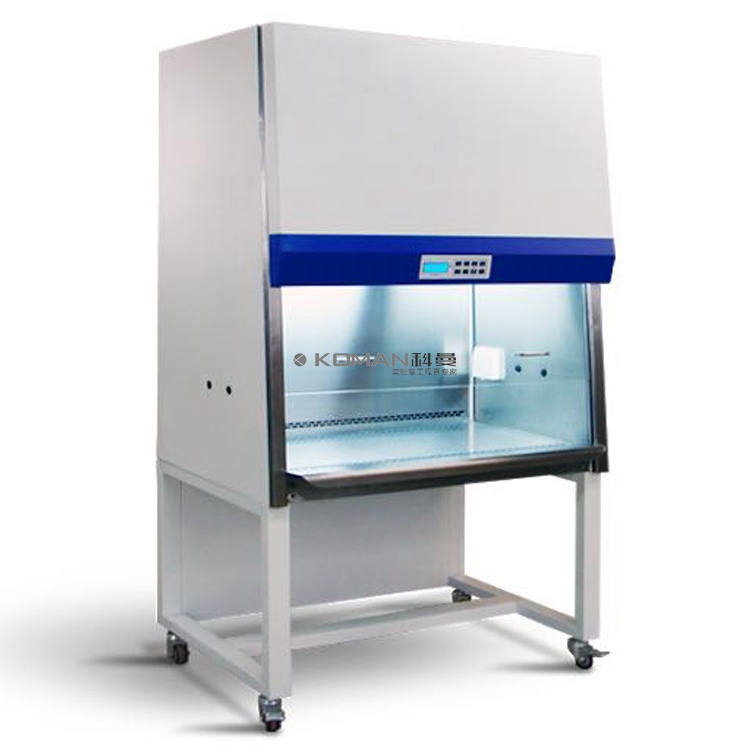

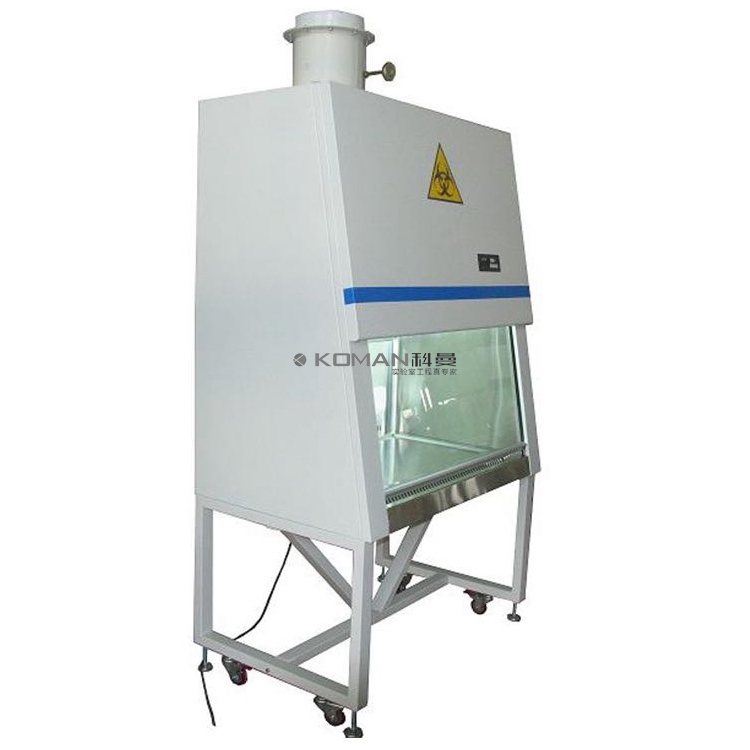

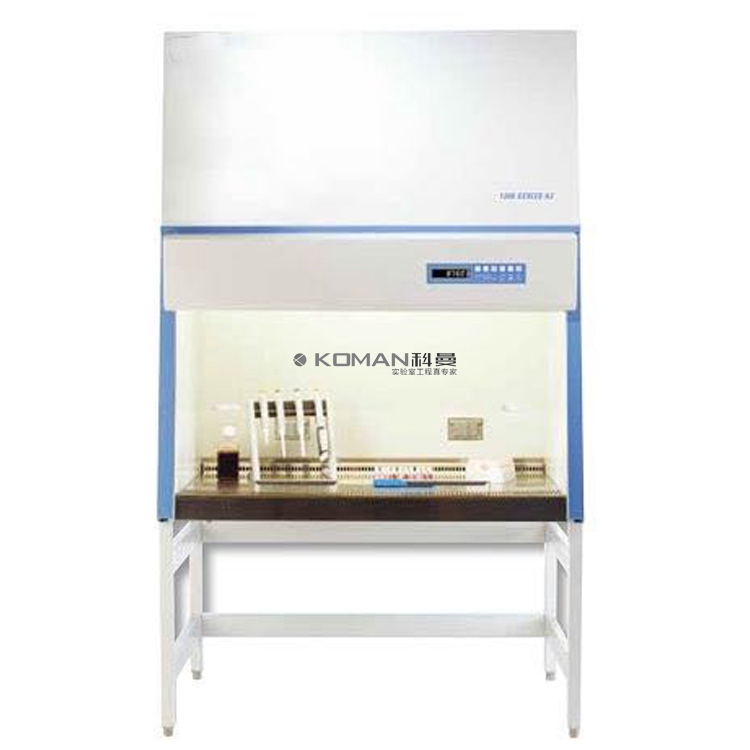

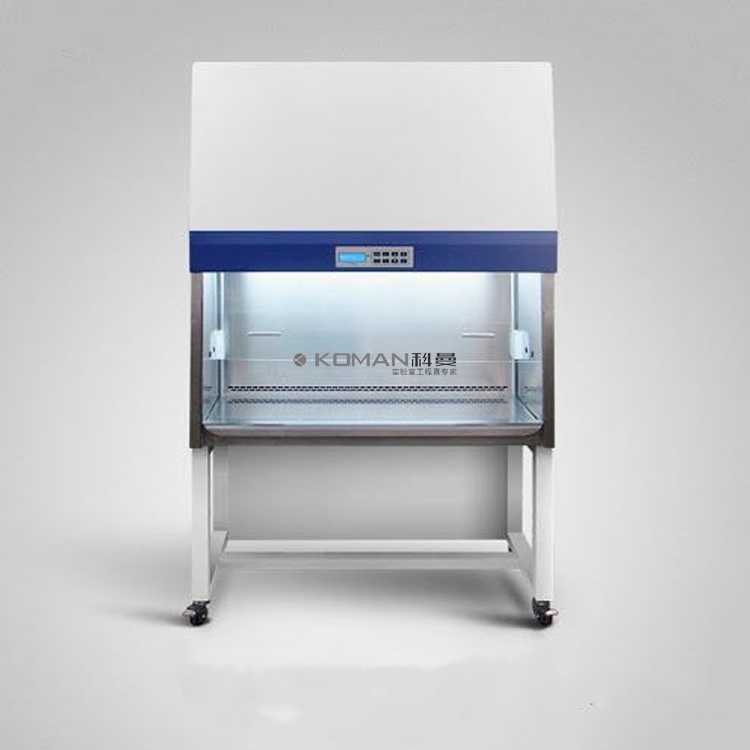

Biosafety Cabinet Flow Class ii for Microbiology Lab

KOMAN biosafety cabinet class ii is made of high-quality cold-rolled steel plate and electrostatic spray; the unique internal cavity safety negative pressure design meets the YY0569-2011 Class II biosafety cabinet for microbiology lab and biosafety cabinet flow standard.


• Type: Biosafety cabinet class ii

• General Use: Commercial Furniture

• Metal Type: Stainless Steel

• Place of Origin: Shenzhen, China

• Brand Name: KOMAN

• Product Name: Biosafety cabinet flow

• Application: Biology lab

• Structure: Steel Structure

• Noise: ≤62dB(A)

• Power Supply: AC220V 10%

• Air Velocity: 0.25-0.45m/s

• Illuminance: ≥900Lx

• HEPA Filter: 99.999% Efficiency

• Packaging Details

• PP film&wooden carton

• Keyword: biosafety cabinet for microbiology lab


Nominal Size1.3meter(4')
Filtration EfficiencyULPA: ≥99.9995%, @0.12μm
Downflow Velocity0.35 m/s(68.88fpm)0.33  m/s(64.94fpm)
Inflow Velocity0.55m/s(108.24fpm)0.53 m/s(104.30fpm)
Noise58~65 dB(A)
Vibration≤5 μm(center of tabletop)
Power SupplyAC220V,1φ,50Hz
Opening Height200 mm
Personnel ProtectionA. Total colony in impaction sampler ≤10CFU./timeB. Total colony in impaction sampler ≤5CFU./time
Product ProtectionTotal colony in culture dish ≤5CFU./time
Cross-contamination ProtectionTotal colony in culture dish ≤2CFU./time
Max Consumption(with spare socket)1.75 kVA
Rated Power(without spare socket)0.43 kVA
Weight300 kg
Work Dimension (W1XD1XH1)1304*630*630 mm(51.3''x24.8''x24.8'')
Overall Dimension(WXDXH)1500*795*2050 mm(59.1''x31.3''x80.7'')
Size and Qty. of LightLED 31 w x 1PC
Size and Qty. of UV Light30 w  x 1PC
Lumin.≥900 Lx
Cabinet MaterialsHigh-grade steel and lacquered in ivory
Working Area MaterialsSS304 fully finished
Air DirectionTop out
