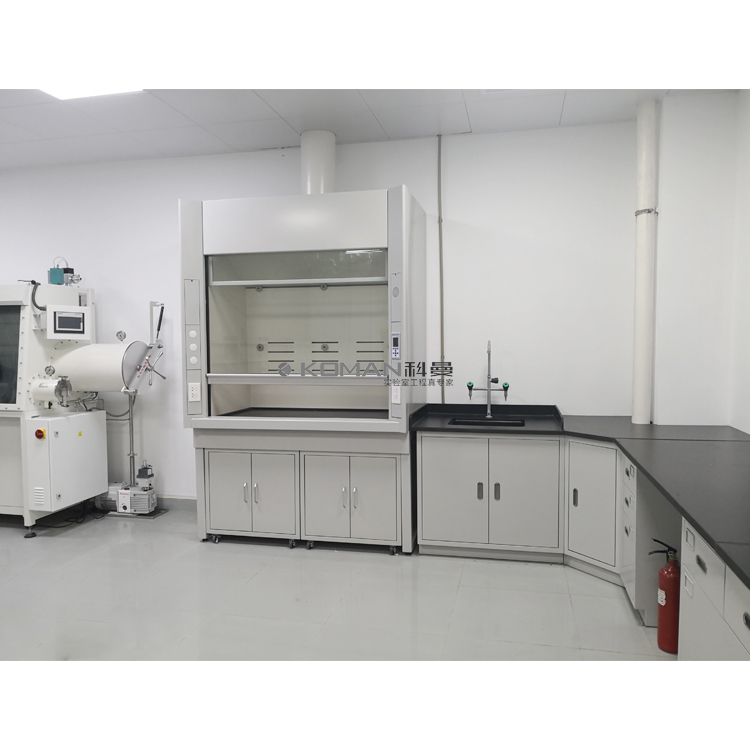

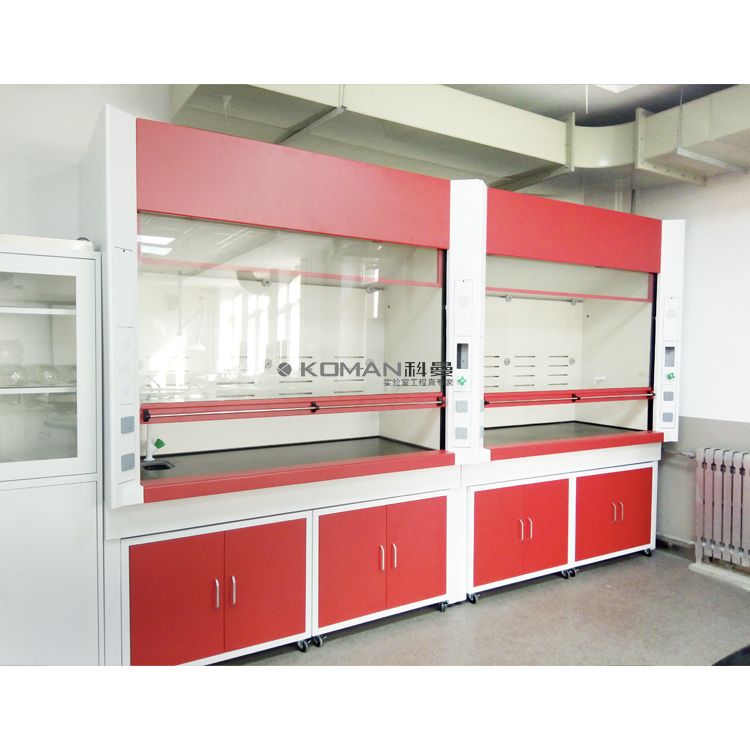

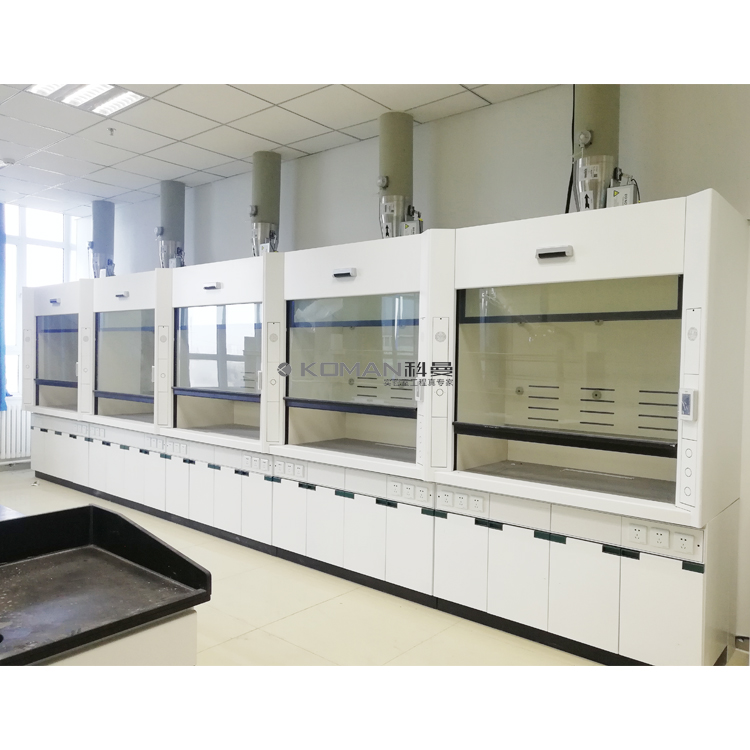

Laboratory Fume Hood Cupboard Exhaust Cabinet

The laboratory fume hood cupboard is made of 1.2mm cold-rolled steel plate which is bent and stamped. The unique air bypass technology of laboratory fume hood exhaust systems can completely eliminate the turbulence phenomenon. The high-quality fume exhaust cabinet is just KOMAN.

Description:

• Type: laboratory fume hood cupboard

• General Use: Commercial Furniture

• Material: FRP

• Brand Name: KOMAN

• Product Name: laboratory fume hood exhaust systems

• Color: Customized

• Work top: Epoxy Resin/ Phenolic Resin/Stainless Steel/Ceramic Work Top

• System: CAV/VAV system(Optional)

• Size: Customer Made

• Function: Chemistry Lab Room Furniture

• keyword: Laboratory Furniture

• Certificate: ISO9001:2008/ ISO14001:2008/ SGS

• Size: Customized

• Packaging Details

• Inner Package: poly-foam & pearl-cotton between each separate parts

• One unit in one master carton

• Key word: fume exhaust cabinet

Specifications:

External Size(W*D*H)1200 x 880 x 2350 mm1500 x 880 x 2350 mm1800 x 880 x 2350 mm
Internal Size(W*D*H)950 x 700 x 1150 mm1250 x 700 x 1150 mm1550 x 700 x 1150 mm
Work Surface Height850 mm850 mm850 mm
Exhaust air volume700-1300m³/h900-1700m³/h1300-2100m³/h
Air Velocity0.3 -- 0.6 m/s
Noise≤65dB(A)
Sash6mm tempered glass
Power SupplyAC110/220V, 50/60Hz(optional)
MaterialMain Body1.0mm, 1.2mm thickness cold-rolled steel with epoxy resin powder coating.
Inner liner Panel5mm thickness compact panel, acid and alkali resistance, temperature resistance and anti-moisture. (Ceramic/ glass fiber/ stainless steel/ PP/ etc optional )
WorktopStandard configuration for the epoxy resin worktop(with the edge of the water) (Phenolic resin, ceramic, stainless steel/ etc. optional)
Exhaust SystemDuctPVC duct system according to your piping layout
BlowerCentrifugal blower
SystemCAV/VAV system optional
AccessoryGas tap, water tap with PP cup sink
Remote control water valve, remote control gas valve
4 waterproof sockets
3 meter PP/PVC duct
10W LED lamp
LED control panel
Net Weight300kgs400kgs500kgs
